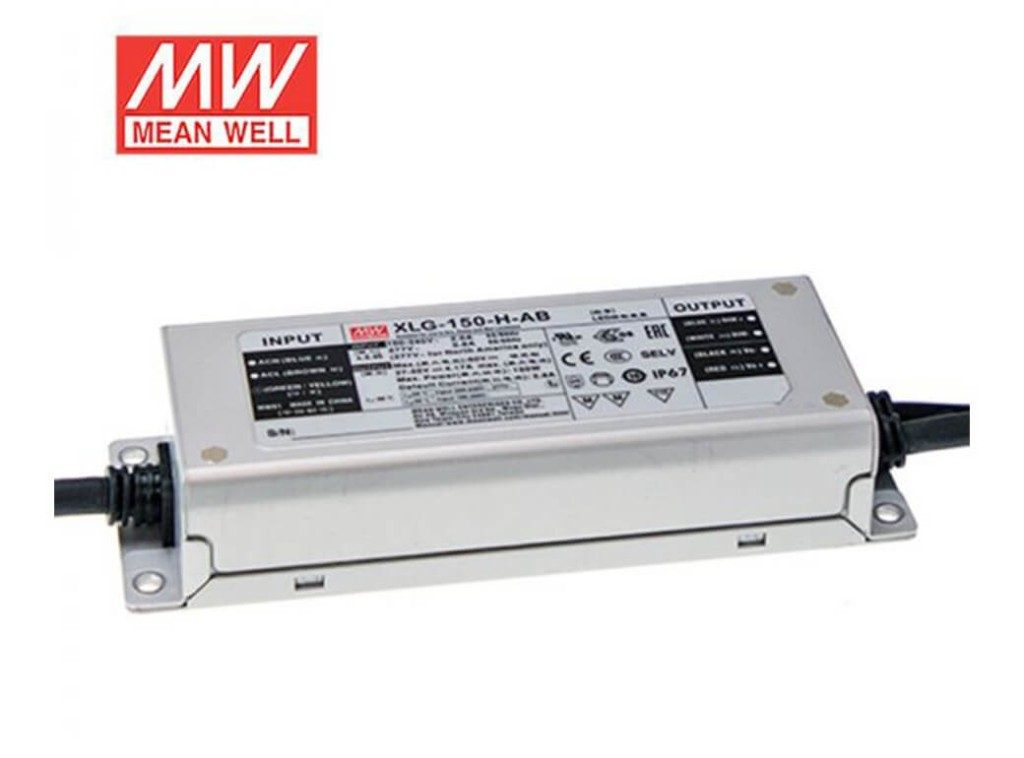

24V Meanwell XLG Series Power Supply

$193.20 NZD
Approx $118.01 USD
Wattage
ADD TO CART ADD TO CART

Meanwell XLG Power Supply

Features:

  • Wide input range 100~305VAC(Class Ⅰ)
  • Full power output at 70~100%
  • Constant power mode operation
  • Metal case with IP67,suitable for outdoor application
  • Surge protection with 6KV/4KV (10KV/6KV optional)
  • Protection functions:OVP/SCP/OCP/OTP
  • Life time >50000 hrs
  • 5 years warranty

Cart

View Cart View Cart Check Out Check Out

Specifications


Voltage Range
100~305VAC 142~431VDC(please refer to "STATIC CHARACTERISTIC"section)
Frequency Range 47~63Hz
Power Factor PF≥0.97/115VAC,PF≥0.95/230VAC,PF≥0.92/277VAC@full load
Total Harmonic Distortion (THD) THD<10%(@load≥50%/115VAC,230VAC;@load≥75%/277VAC)
Efficiency 92%
AC Current (Typ.) 2.2A/115VAC 1.1A/230VAC 0.9A/277VAC
Inrush Current (Typ.) cold start 65A(twidth=550μs,measured at 50% Ipeak) at 230VAC;Per NEMA 410
Leakage Current (Typ.) <0.75mA/277VAC
Max. No. of Units on 16A Circuit Breaker 3 units(circuit breaker of type B)/6 units(circuit breaker of type C)at 230VAC
No Load/Standby Power NO load power consumption<0.5W

Features

Meanwell XLG Power Supply

Features:

  • Wide input range 100~305VAC(Class Ⅰ)
  • Full power output at 70~100%
  • Constant power mode operation
  • Metal case with IP67,suitable for outdoor application
  • Surge protection with 6KV/4KV (10KV/6KV optional)
  • Protection functions:OVP/SCP/OCP/OTP
  • Life time >50000 hrs
  • 5 years warranty
Meanwell XLG Enquire About This Product Enquire About This Product



  • Description
  • Key Specification
  • Accessories
  • Downloads

Meanwell XLG Power Supply

Features:

  • Wide input range 100~305VAC(Class Ⅰ)
  • Full power output at 70~100%
  • Constant power mode operation
  • Metal case with IP67,suitable for outdoor application
  • Surge protection with 6KV/4KV (10KV/6KV optional)
  • Protection functions:OVP/SCP/OCP/OTP
  • Life time >50000 hrs
  • 5 years warranty
