Meanwell LPH Power Supply

$38.64 NZD
Approx $23.60 USD
Voltage
Wattage
ADD TO CART ADD TO CART

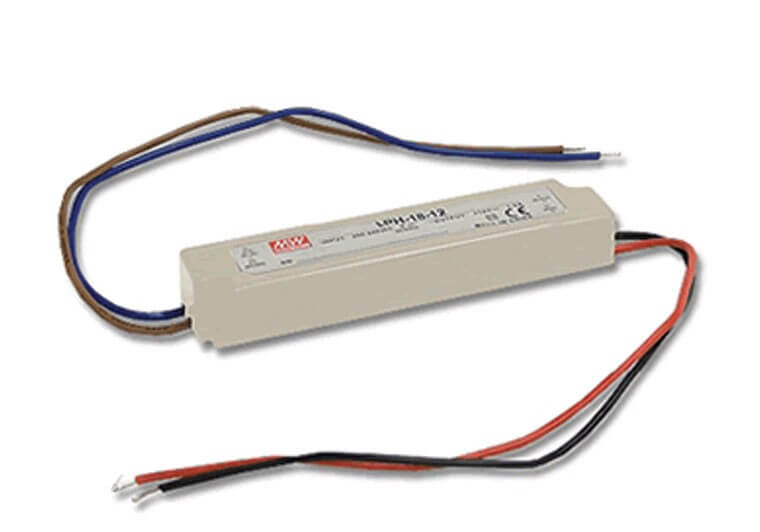

Meanwell LPH Series LED Power Supply

The LPH Series from Meanwell is a compact, economical Constant Voltage LED power supply/driver suitable for installation in wet and dry locations.
Dimensions are 14cm L / 2.8cm W /2.2cm D.

  • 180 - 264VAC input
  • Fully encapsulated to IP67
  • Short Circuit, Over load, Over Voltage & Over Temp protection
  • Cooling by free air convection
  • Class II Power Supply
  • 12V DC / 24V DC Output
  • 2 year warranty

Cart

View Cart View Cart Check Out Check Out

Specifications

AC input voltage range 180~264VAC
AC inrush current Cold start,50A at 230VAC
Overload Range >105%
Protection Type Hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Withstand voltage I/P-O/P: 3kVAC
Working temperature -30~+70°C
Vibration 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards TUV EN60950-1, EN61347-1, EN61347-2-13 approved for LPH-18
EMC standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Connection Input UL rated,18AWGx2C (30cm)
Connection Output UL rated,18AWGx2C (30cm)
Dimension (LxWxH)(mm) 140x 30x 22

Features

Meanwell LPH Series LED Power Supply

The LPH Series from Meanwell is a compact, economical Constant Voltage LED power supply/driver suitable for installation in wet and dry locations.
Dimensions are 14cm L / 2.8cm W /2.2cm D.

  • 180 - 264VAC input
  • Fully encapsulated to IP67
  • Short Circuit, Over load, Over Voltage & Over Temp protection
  • Cooling by free air convection
  • Class II Power Supply
  • 12V DC / 24V DC Output
  • 2 year warranty
Meanwell LPH-18 Enquire About This Product Enquire About This Product



  • Description
  • Key Specification
  • Accessories
  • Downloads

Meanwell LPH Series LED Power Supply

The LPH Series from Meanwell is a compact, economical Constant Voltage LED power supply/driver suitable for installation in wet and dry locations.
Dimensions are 14cm L / 2.8cm W /2.2cm D.

  • 180 - 264VAC input
  • Fully encapsulated to IP67
  • Short Circuit, Over load, Over Voltage & Over Temp protection
  • Cooling by free air convection
  • Class II Power Supply
  • 12V DC / 24V DC Output
  • 2 year warranty
