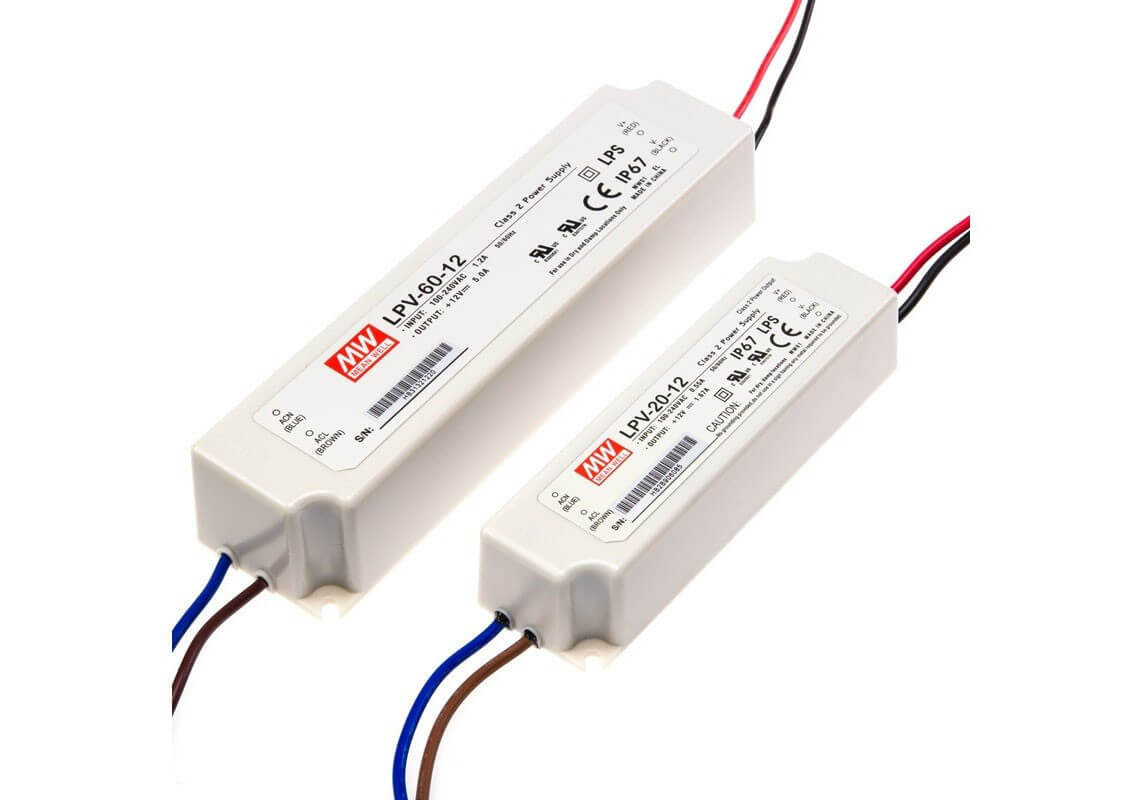

12V Meanwell LPV Series Power Supply

$56.75 NZD
Approx $34.66 USD
Wattage
ADD TO CART ADD TO CART

Features:

  • Universal AC input / Full range
  • Fully isolated plastic case with IP67 level
  • Protections: Short circuit / Overload / Over voltage
  • IP66 design
  • Constant voltage
  • Withstand 300VAC surge input for 5 seconds
  • Two wire input style, no F.G.
  • Cooling by free air convection
  • Low cost, high reliability
  • Suitable for LED lighting and moving sign applications
  • 2 years warranty

Cart

View Cart View Cart Check Out Check Out

Specifications

Technical:

  • AC input voltage range ..........90~264VAC
  • AC inrush current ..........Cold start, 60A at 230VAC
  • Overload protection ..........110%~150% Hiccup mode, auto-recovery
  • Over voltage protection ..........115%~135% rated output voltage
  • Withstand voltage ..........I/P - O/P: 3KVAC
  • Working temperature ..........-30~+70 o C (refer to output derating curve)
  • Safety standards ..........UL1310 Class 2, CAN/CSA C22.2 No. 223-M91, IP67 approved ; design refer to TUV EN60950-1, EN61347-2-13
  • EMC standards ..........EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, ENV50204
  • Connection ..........UL rated,16AWGx2C (60cm)



Power Supply Dimensions:

  • 20 Watts 11.5cm L / 3.5cm W / 2.5cm D
  • 35 Watts 14.5cm L / 3.5cm W / 3cm D
  • 60 Watts 16cm L / 4cm W / 3.2cm D
  • 100 Watts 18.5cm L / 5cm W / 3.7cm D

Features

Features:

  • Universal AC input / Full range
  • Fully isolated plastic case with IP67 level
  • Protections: Short circuit / Overload / Over voltage
  • IP66 design
  • Constant voltage
  • Withstand 300VAC surge input for 5 seconds
  • Two wire input style, no F.G.
  • Cooling by free air convection
  • Low cost, high reliability
  • Suitable for LED lighting and moving sign applications
  • 2 years warranty
