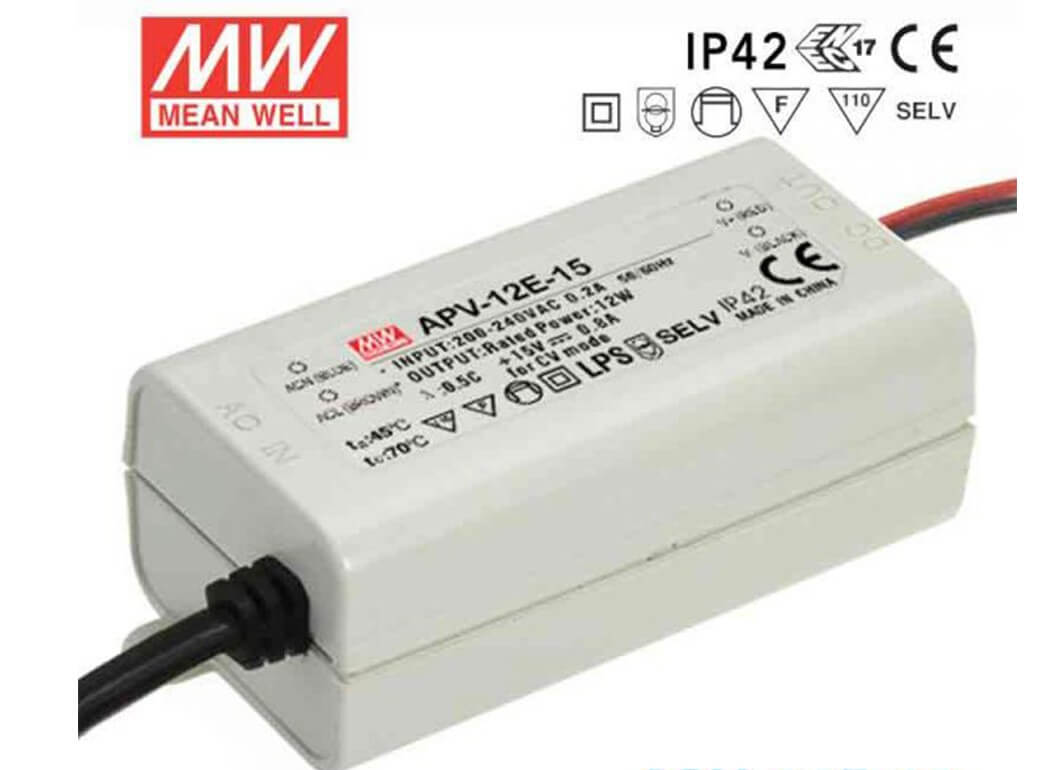

12V Meanwell APV Power Supply

$35.26 NZD
Approx $21.88 USD
Wattage
ADD TO CART ADD TO CART

Meanwell APV Series LED Power Supply

  • Universal AC input / Full range
  • Fully isolated plastic case
  • Protections: Short circuit / Overload / Over voltage
  • Constant voltage design
  • IP42 design
  • Class 2 power unit
  • Isolation class II, no F.G.
  • Cooling by free air convection
  • 100% full load burn-in test
  • Low cost, high reliability
  • Suitable for LED lighting and moving sign applications
  • 2 years warranty

Cart

View Cart View Cart Check Out Check Out

Specifications

AC input voltage range 180~264VAC ; 254~370VDC
AC inrush current Cold start, 70A at 230VAC
Protection Type Hiccup up mode, auto-recovery
Withstand voltage I/P-O/P: 3.75kVAC
Working temperature -30~+70°C (refer to output derating curve)
Vibration 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards UL8750 approved;Design refer to EN60950-1,EN61347-1, EN61347-2-13
EMC standards EN55022, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN55024
Connection Input H03VVH2-F 0.75mm²x2C (15cm)
Connection Output UL rated, 20AWGx2C (15cm)
Dimension (LxWxH)(mm) 77x 40x 29

Features

Meanwell APV Series LED Power Supply

  • Universal AC input / Full range
  • Fully isolated plastic case
  • Protections: Short circuit / Overload / Over voltage
  • Constant voltage design
  • IP42 design
  • Class 2 power unit
  • Isolation class II, no F.G.
  • Cooling by free air convection
  • 100% full load burn-in test
  • Low cost, high reliability
  • Suitable for LED lighting and moving sign applications
  • 2 years warranty
Meanwell APV Enquire About This Product Enquire About This Product



  • Description
  • Key Specification
  • Accessories
  • Downloads

Meanwell APV Series LED Power Supply

  • Universal AC input / Full range
  • Fully isolated plastic case
  • Protections: Short circuit / Overload / Over voltage
  • Constant voltage design
  • IP42 design
  • Class 2 power unit
  • Isolation class II, no F.G.
  • Cooling by free air convection
  • 100% full load burn-in test
  • Low cost, high reliability
  • Suitable for LED lighting and moving sign applications
  • 2 years warranty
