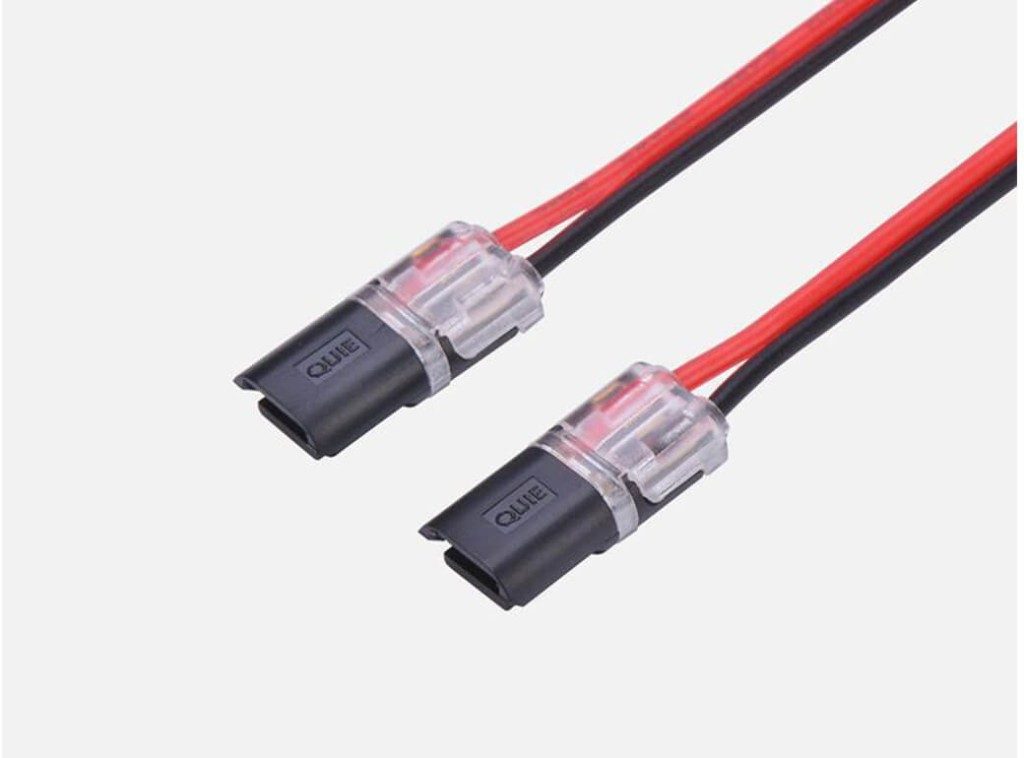

Plug Terminal Connector
This product can't be ordered online.
Contact us to order it.
- Description
- Accessories
- Downloads
Plug Terminal Connector
| Color (Up/Bottom) | Transparent/Black |
| Polarity NO. | 2 |
| Wire Distance | 1.3 mm |
| Rated Standard | IEC/EN 60664-1 |
| Over voltage Category EN I | III |
| Pollution Level | 2 |
| Ingress Protection | IP40 |
| Reusable Time | < 3 times |
| Rated Voltage EN | 36V |
| Rated Current EN | 9A |
| Minimum Cross Sectional Area | 0,34 - 0,5 mm² |
| Workable Wire Type | Solid wire/Strand wire |
| Workable Wire Gauge [AWG] |
22-20# AWG |
| Housing Material | Polycarbonate |
| Connection Hardware |
high-precision copper(Cu) |
| Normal Working TEMP. |
-35 -+80℃ |
| Working Ambient TEMP. |
-35 -+60℃ |
| Flame Retardant Level |
UL94v-0 |
| Pin Surface Treatment |
Corrosion Resistance Cleaning |
