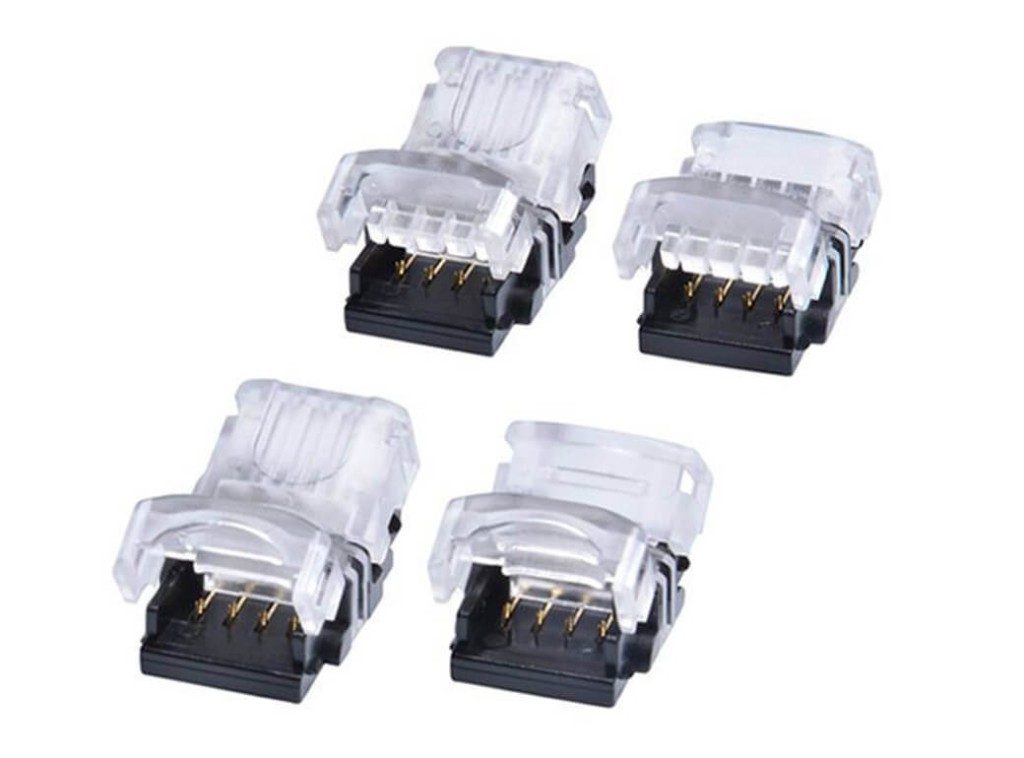

Starter | 4 Pin RGB IP20

$3.40 NZD
Approx $2.08 USD
ADD TO CART ADD TO CART

STARTER | 10mm RGB LED Strip

10mm RGB LED Strip power starters are designed for colour change LED strip such as iFlex RGB and iFlex Intense RGB. The workable LED density is from 30LEDs to 96LEDs per meter for both waterproof and non-waterproof tape light. IDC technology make it possible to connect strip light with red / blue VHB foam tape on the back.

Cart

View Cart View Cart Check Out Check Out

Specifications

Strip Light Protection Level IP20
Wire Cross Section 0.34~0.75 mm²
Workable Wire Gauge 22 ~18 AWG
Workable Wire OD 2.1mm
Pin QTY 4
Pin Pitch 2.5mm
Way of Contact Insulation Piercing Contact
Working Voltage 3V - 24V
Rated Current 5Amp
Housing Color (cap/base) Clear/Black
Min.LED Strip Thickness >0.2mm
Housing Material Polycarbonate
Pin Material Phosphor coated copper
Flame Retardant Level UL94v-0



Features

STARTER | 10mm RGB LED Strip

10mm RGB LED Strip power starters are designed for colour change LED strip such as iFlex RGB and iFlex Intense RGB. The workable LED density is from 30LEDs to 96LEDs per meter for both waterproof and non-waterproof tape light. IDC technology make it possible to connect strip light with red / blue VHB foam tape on the back.

SLC ConnectX SEN10XB-4 Enquire About This Product Enquire About This Product



  • Description
  • Key Specification
  • Accessories
  • Downloads

STARTER | 10mm RGB LED Strip

10mm RGB LED Strip power starters are designed for colour change LED strip such as iFlex RGB and iFlex Intense RGB. The workable LED density is from 30LEDs to 96LEDs per meter for both waterproof and non-waterproof tape light. IDC technology make it possible to connect strip light with red / blue VHB foam tape on the back.
