High-Density COB LED Strip – Seamless Continuous Light

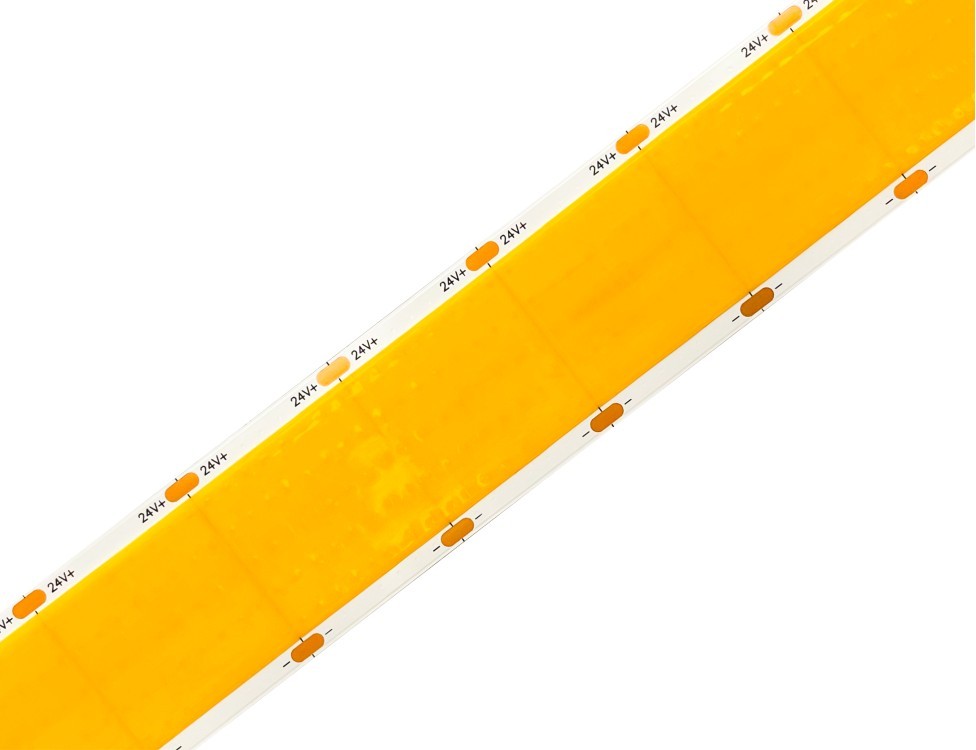

This high-output COB LED strip is engineered for demanding architectural lighting applications where maximum brightness and perfectly uniform light are required. With a 30 mm wide PCB and advanced Chip-On-Board (COB) technology, it delivers a powerful, seamless line of light with no visible LED dotting.

Producing up to 4300 lumens per metre, this strip is designed for large-scale installations such as coves, ceiling features, light boxes, and architectural recesses where high light levels and visual consistency are critical.
Due to its width and output, installation within a suitable aluminium profile for heat management is strongly recommended.

Operating on 24V DC, the strip offers stable performance and long run lengths, making it ideal for commercial, hospitality, and feature architectural environments.

Key Features

• Ultra high-output COB LED technology

• Up to 4300 lm/m continuous, dot-free illumination

• 30 mm wide PCB for enhanced thermal performance

• Seamless line of light with excellent visual uniformity

• 24V DC operation for stable, efficient power delivery

• Designed for architectural profiles and large-scale installations


Typical Applications

• Cove and ceiling feature lighting

• Architectural recesses and bulkheads

• Light boxes and luminous ceilings

• Feature walls and large linear installations

• Commercial and hospitality interior spaces


Technical Summary

• LED Type: COB (Chip-On-Board)

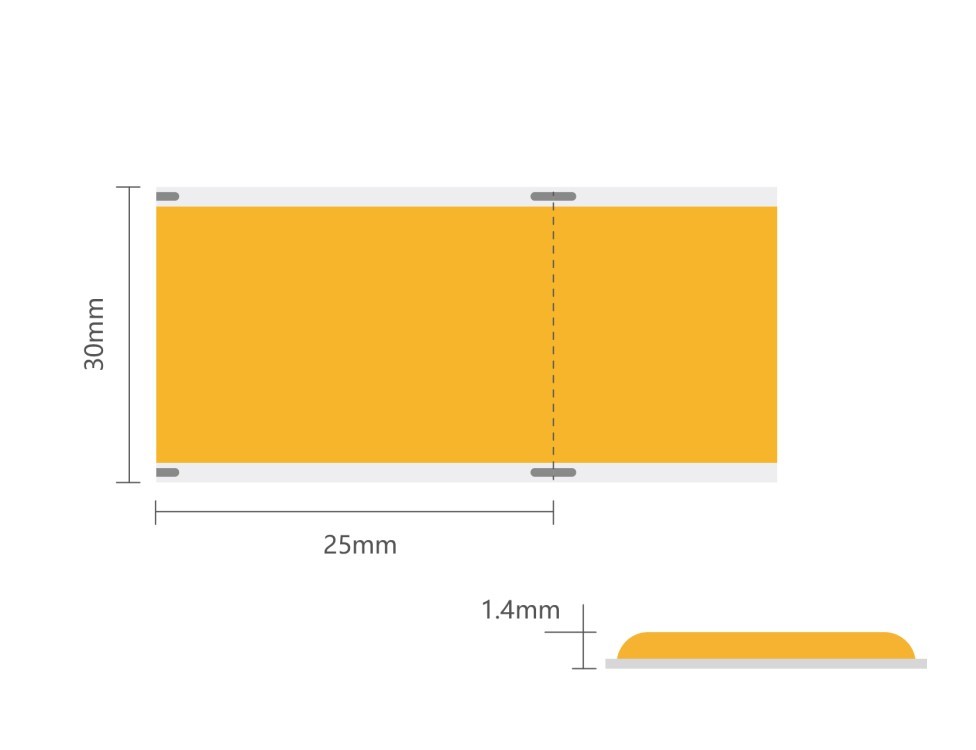

• PCB Width: 30 mm
• 1600 LEDs per meter
• Luminous Output: Up to 4300 lm per metre

• Input Voltage: 24V DC

• Light Effect: Continuous, dot-free line of light

• Installation: Aluminium profile required

• Use Environment: Indoor architectural applications


(Detailed specifications available on request)
