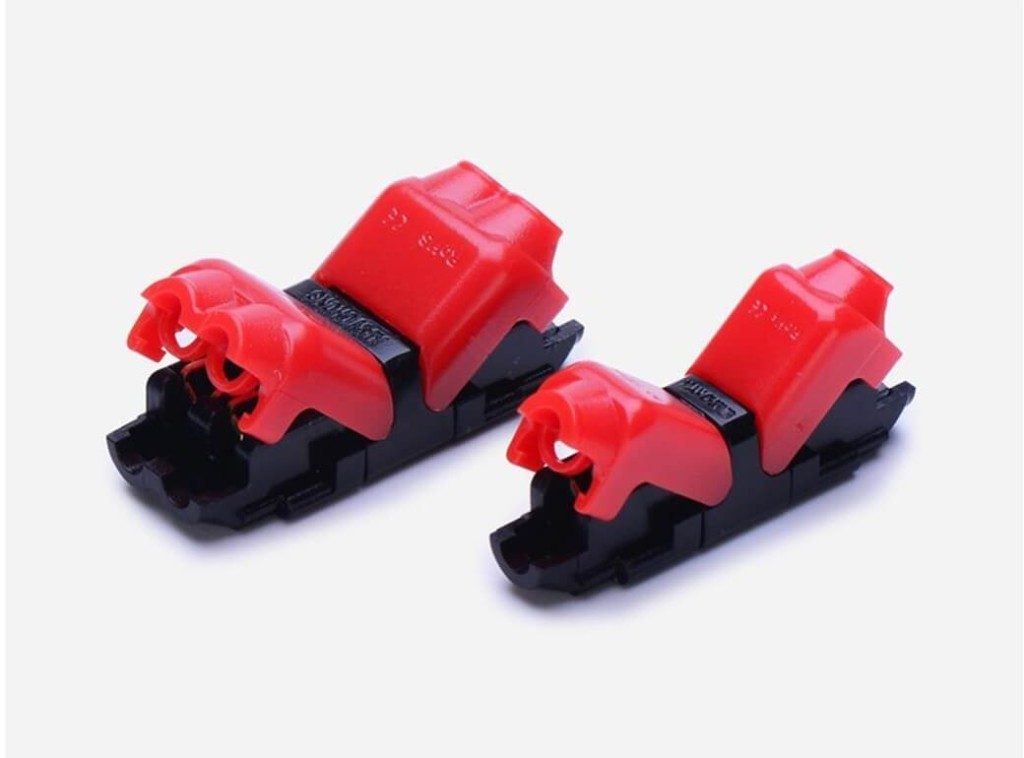

Straight Wire Splice
The easiest way to extend or splice electrical cable in LED strip and sign applications. The Splice connector uses IDC technology to reliably connect a single or double strand of wire up to 0.5mm2 diameter.
| Color (Up/Bottom) | Red/Black |
| Polarity NO. |
WJ-I-1=1 WJ-I-2=2 |
| Wire Distance | 1.3 mm |
| Rated Standard | IEC/EN 60664-1 |
| Over voltage Category EN I | III |
| Pollution Level | 2 |
| Ingress Protection | IP40 |
| If Reusable | Yes |
| Rated Voltage EN | 300V |
| Peak Voltage | 2.5KV |
| Rated Current EN | 9A |
| Workable Wire Gauge [AWG] / Cross Sectional Area [mm2] | 22~20AWG / 0.34~0.50 mm2 |
| Workable Wire Type | Solid wire/Strand wire |
| Housing Material |
Polycarbonate |
| Connection Hardware |
high-precision copper(Cu) |
| Normal Working TEMP. |
-35 -+80℃ |
| Working Ambient TEMP. |
-35 -+60℃ |
| Flame Retardant Level |
UL94v-0 |
| Pin Surface Treatment |
Corrosion Resistance Cleaning |
