SLC ConnectX

Connector | 8mm 2 Pin IP20

OL11-SEN8BB-2
$3.50 NZD
Approx $2.44 USD inc

Enquire About This Product



  • Description
  • Accessories
  • Downloads

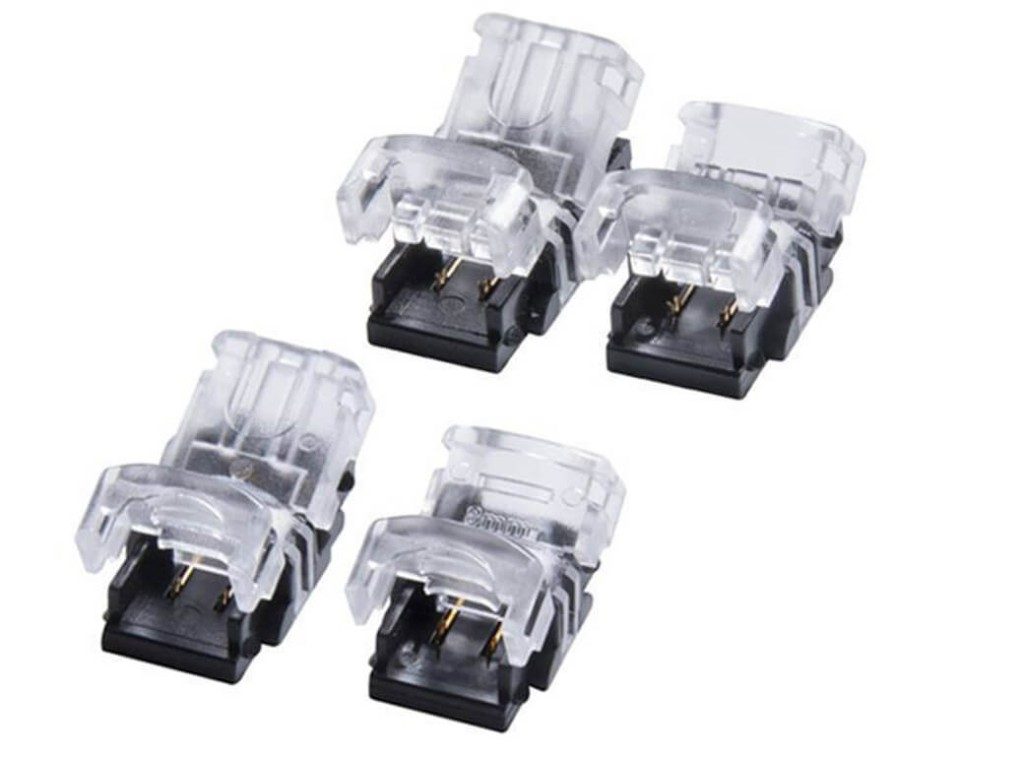

LED Strip Connector | 8mm 2 Pin IP20

The connector provides a simple, tool free and solder free method to connect all iFlex and iFlex Intense LED strips together. Simply slide the strip into the connector and lock down

Polarity QTY 2
Pin Pitch 3.6mm
Way of Contact insulation-piercing contact
Working Voltage DC3V~24V
Rated Current 5A
Housing Color (cap/base) Transparent / Black
Min.LED Strip Thickness >0.2mm
Housing Material PC
Pin Material Phosphor Copper (Cu)
Flame Retardant Level UL94v-0
